MageFlow Viewer¶

Desktop app for visualizing mageflow workflows as interactive task graphs.

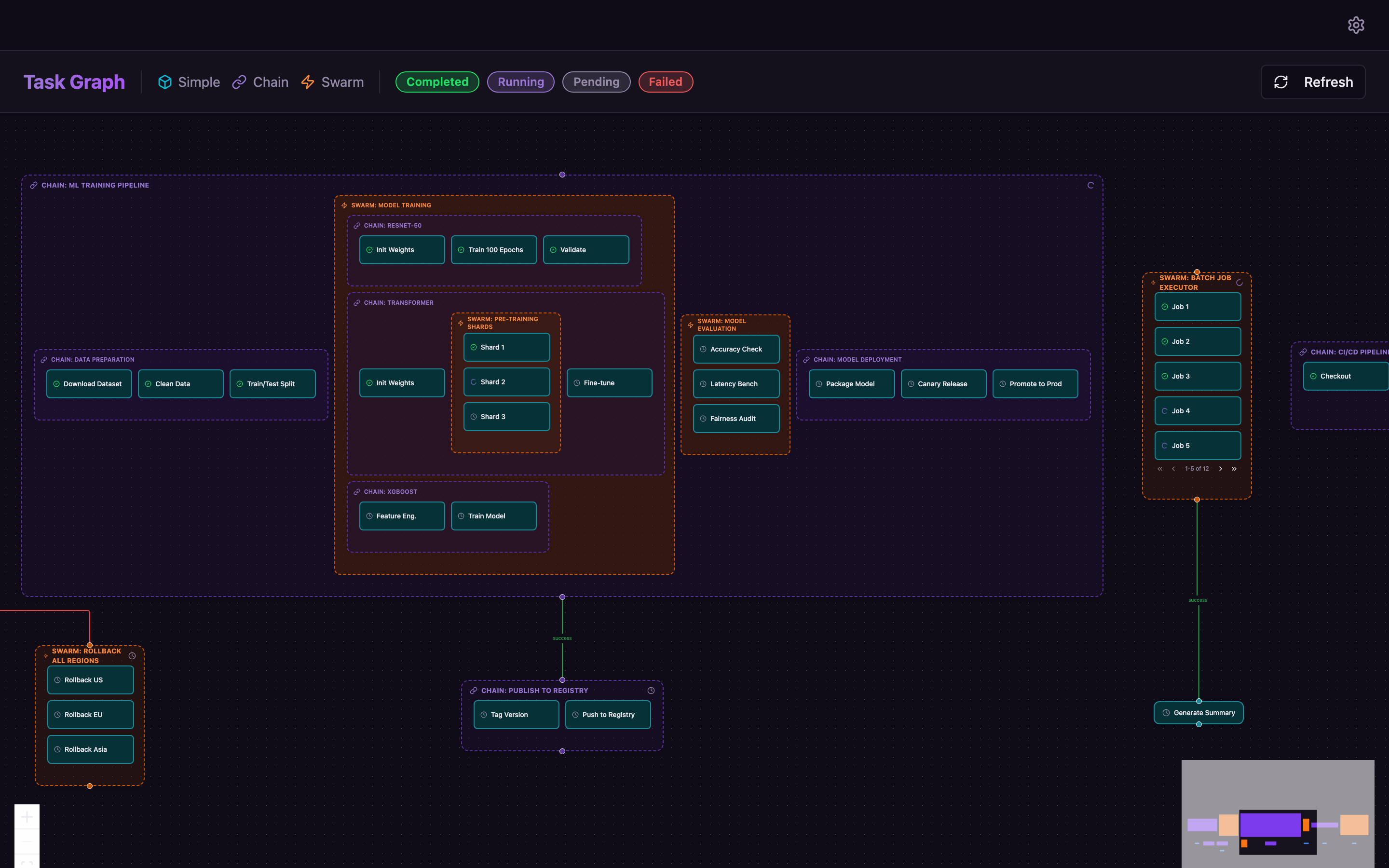

MageFlow Viewer task graph

Installation¶

Homebrew (macOS)¶

brew install imaginary-cherry/mageflow/mage-voyance        # stable
brew install imaginary-cherry/mageflow/mage-voyance-beta   # beta

Direct Download¶

Download the latest release for your platform from GitHub Releases:

Platform	Format
macOS (Apple Silicon)	`.dmg`
Windows	`.msi`
Linux (Debian)	`.deb`
Linux (Other)	`.AppImage`

macOS unsigned app

The macOS build is currently unsigned. On first launch, right-click the app and select "Open", then confirm in the dialog.

First Launch¶

On first launch, the onboarding screen asks for your connection details:

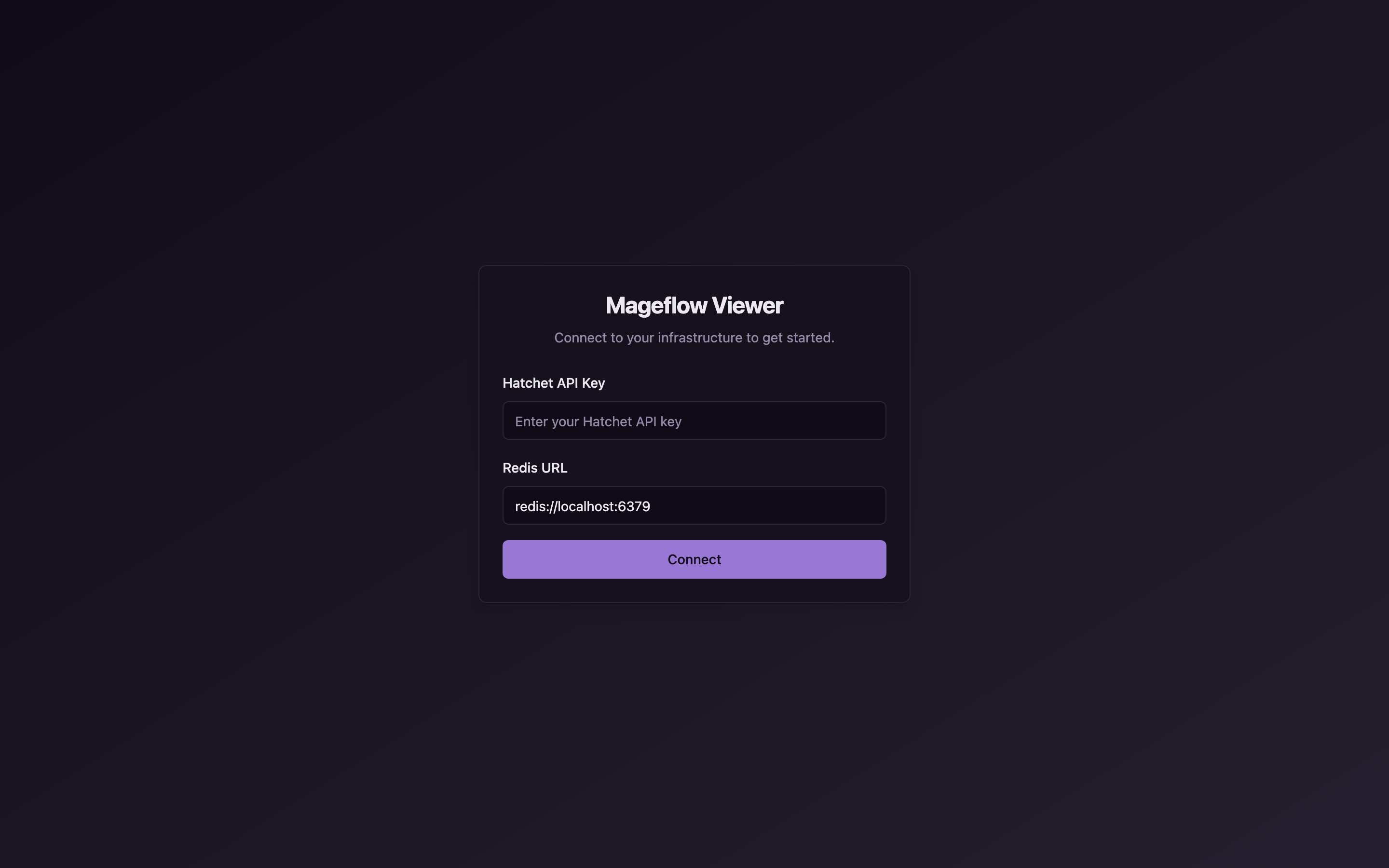

Onboarding screen

Hatchet API Key -- from your Hatchet dashboard
Redis URL -- your Redis instance (e.g. redis://localhost:6379)

After connecting, the app starts the backend sidecar and loads your workflows automatically.

Task Graph¶

The main view renders your workflow as an interactive graph.

Node types:

Simple -- a single task execution (blue)
Chain -- sequential tasks that run one after another (purple container)
Swarm -- parallel tasks that run simultaneously (orange container)

The header bar shows a legend and status filters. Use Refresh to reload the graph.

Pan, zoom, and click any node to inspect it.

Task Details¶

Click a node to open the detail panel on the right.

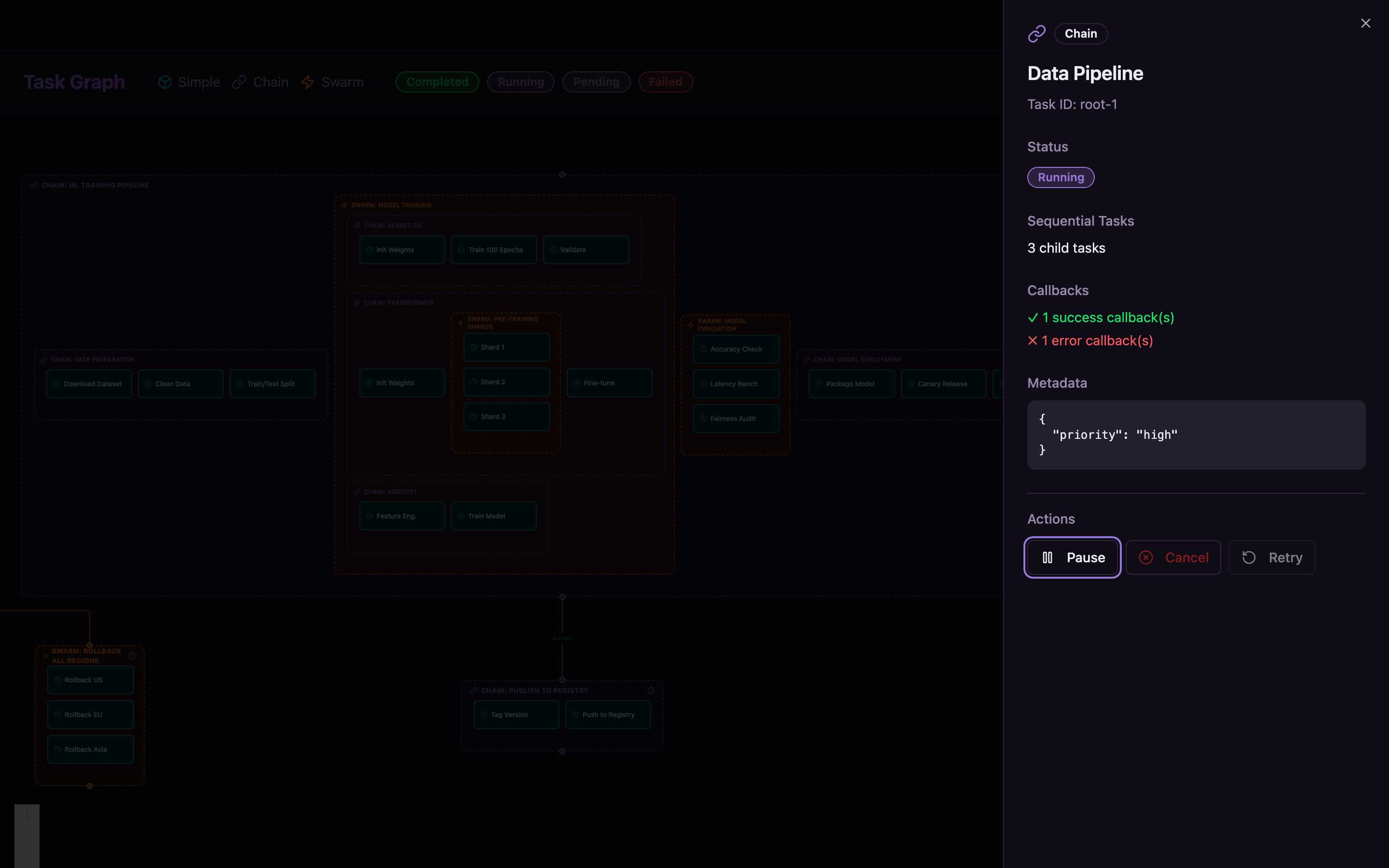

Task detail panel

The panel shows:

Task type, name, and ID
Current status
Child tasks (sequential or parallel)
Callbacks (success/error)
Actions: Pause, Cancel, Retry

Settings¶

Click the gear icon in the top-right corner to open settings.

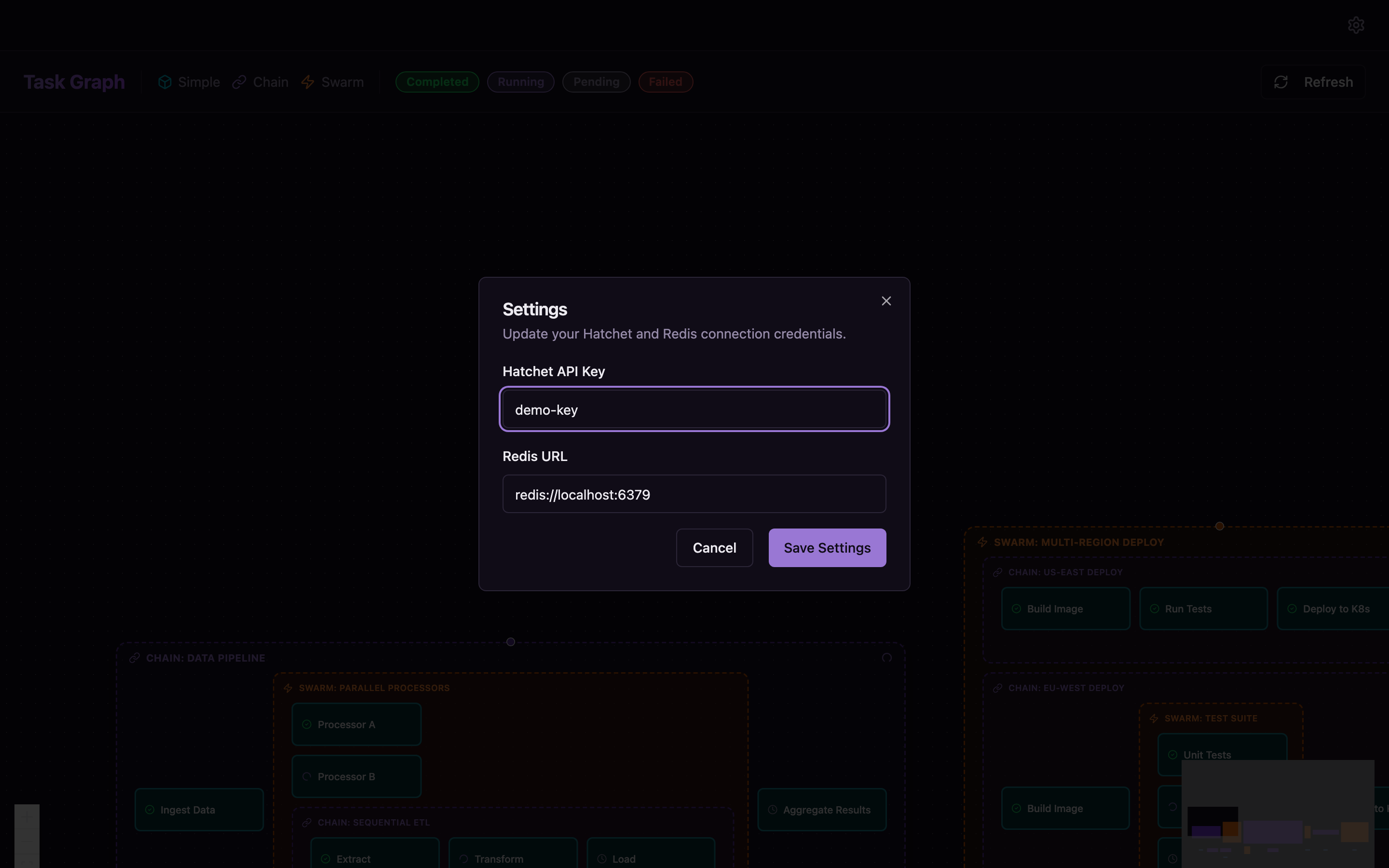

Settings dialog

Update your Hatchet API key or Redis URL here. Click Save Settings to apply.

System Tray¶

The app lives in your system tray with connection status:

Connection indicator -- shows whether the backend is connected
Show/Hide -- toggle the main window
Settings -- open the settings dialog
Quit -- fully exit the app and stop the backend

Troubleshooting¶

Connection banner appears: A warning banner shows when the backend becomes unreachable. Check that your Redis instance is running and your Hatchet token is valid.

Startup error screen: If the sidecar fails to start, an error screen shows the details with a Retry button. Open Settings to verify your credentials.
